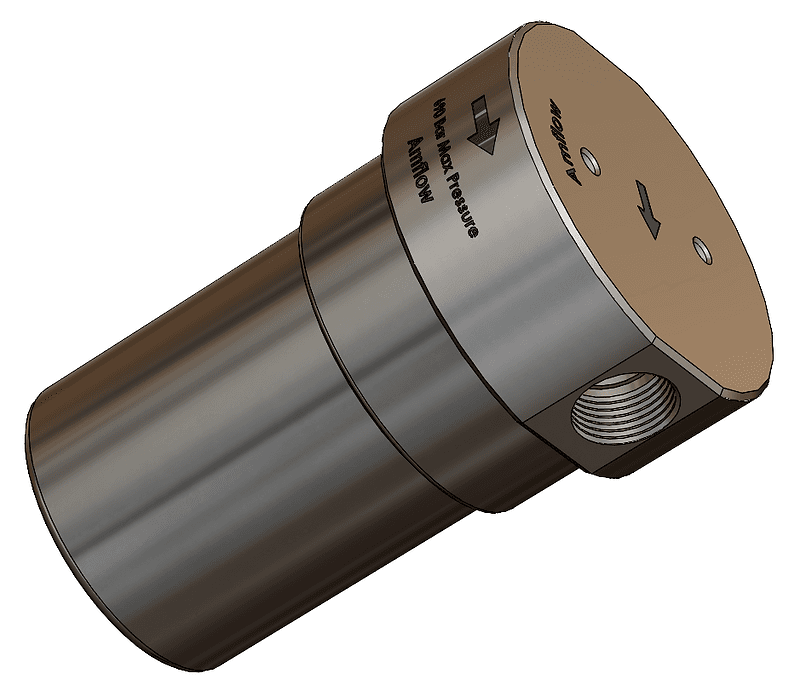

The Amflow LPI-2 Filter is the high-pressure version of the LPI Filter, rated to 690 bar (10,000 psi) for use with small-bore high-pressure chemical injection lines. It handles flow rates up to 1,000 LPH with standard SF562CX Medium Pressure ports. Standard MOC is 316/316L stainless steel with pleated 316 SS sintered metal fiber felt elements. The LPI-2 is supplied with a full Technical Data Sheet and Installation, Operation & Maintenance Manual.
| Flow Rates | Up to 1,000 LPH |
| Maximum Operating Pressure | 690 bar (10,000 psi) |
| Standard MOC | 316/316L Stainless Steel |
| Filter Elements | Pleated 316 SS sintered metal fiber felt |
| Ports | SF562CX Medium Pressure |
Most popular Amflow filter. Low-pressure simplex filter, up to 5,000 LPH at 414 bar (6,000 psi). Pleated 316 SS elements, 1/2" FBSPP or FNPT ports.
High-pressure simplex filter, up to 5,000 LPH at 690 bar (10,000 psi). SF562CX medium-pressure ports for 9/16" tubing.
Ultra-high pressure simplex filter rated to 931 bar (13,340 psi). Covers up to 3,000 LPH with SF562CX medium-pressure ports.
Contact our engineering team for custom specifications, material options, and technical support for the LPI-2 Filter.
