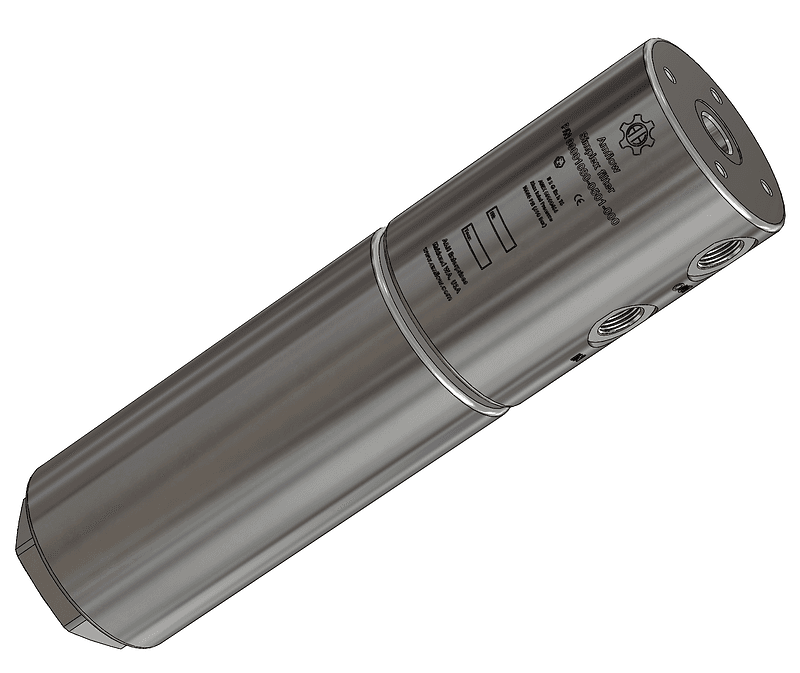

The Amflow Simplex Filter-HP is the high-pressure version of the Simplex Filter series, rated for maximum operating pressures of 690 bar (10,000 psi). It handles the same high flow rates of up to 5,000 LPH as the LP version but with elevated pressure capability. Standard MOC is 316/316L stainless steel with pleated 316 SS sintered metal fiber felt elements. Standard ports are SF562CX Medium Pressure for use with 9/16" tubing, providing high-integrity sealing at elevated pressures.
Downloads will be available soon. Please contact us for documentation.
| Flow Rates | Up to 5,000 LPH |
| Maximum Operating Pressure | 690 bar (10,000 psi) |
| Standard MOC | 316/316L Stainless Steel |
| Filter Elements | Pleated 316 SS sintered metal fiber felt |
| Ports | SF562CX Medium Pressure for 9/16" tubing |

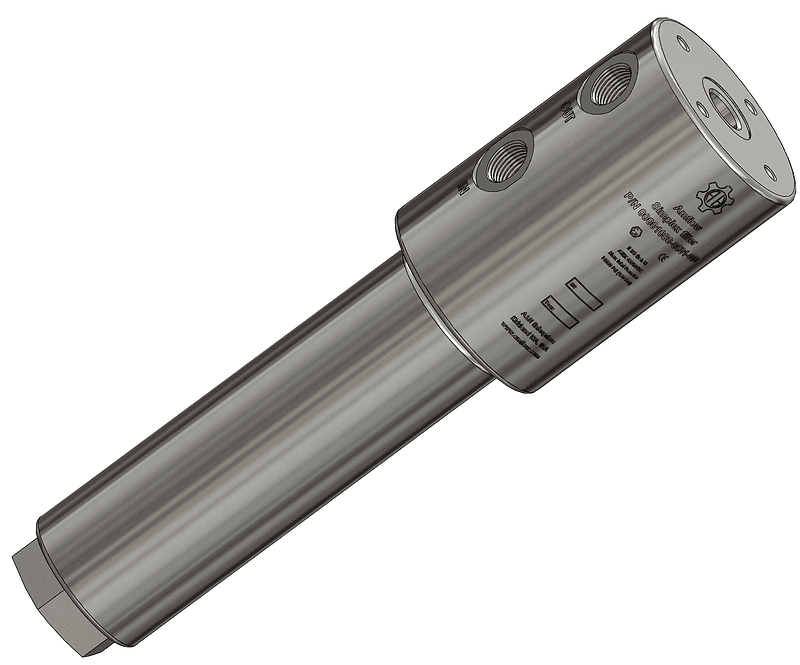

Most popular Amflow filter. Low-pressure simplex filter, up to 5,000 LPH at 414 bar (6,000 psi). Pleated 316 SS elements, 1/2" FBSPP or FNPT ports.

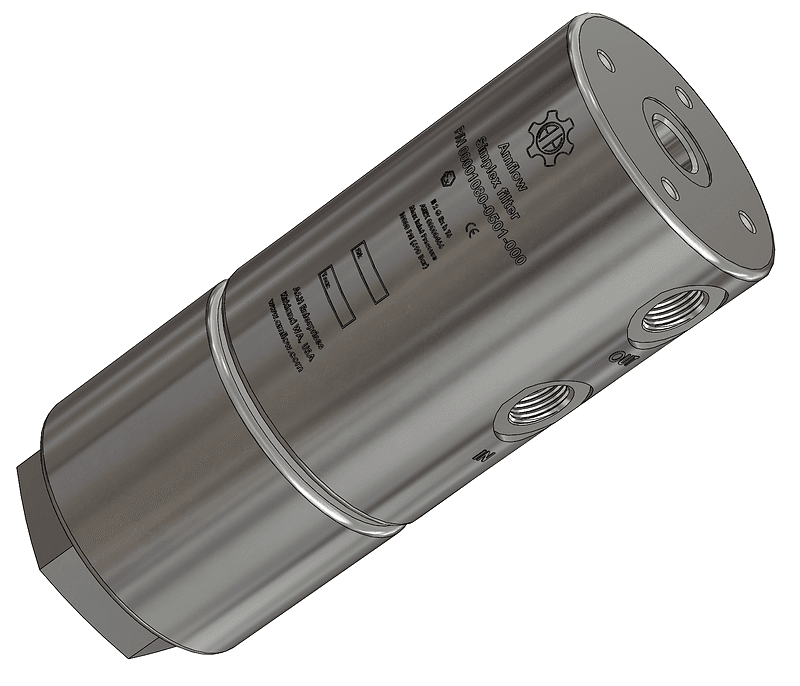

Ultra-high pressure simplex filter rated to 931 bar (13,340 psi). Covers up to 3,000 LPH with SF562CX medium-pressure ports.

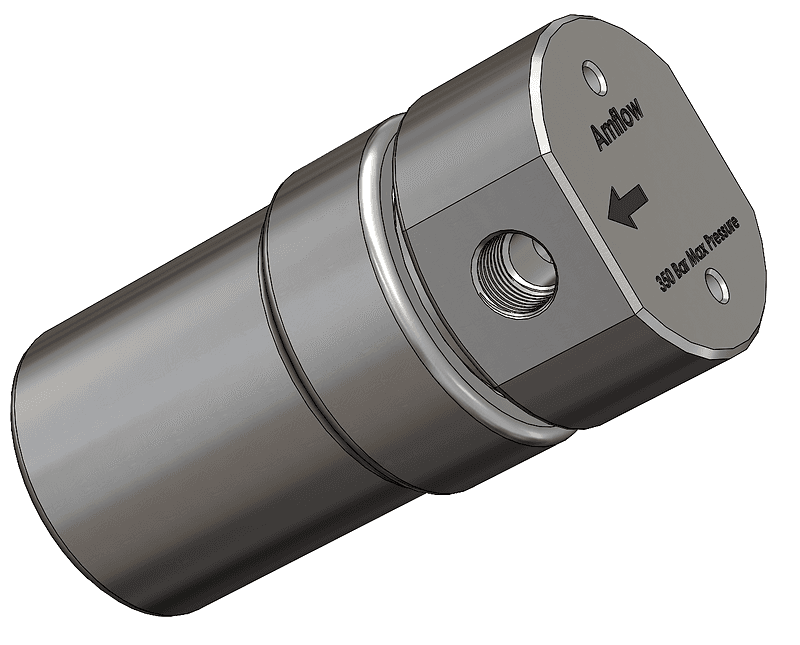

Compact low-pressure filter for small-bore chemical injection lines. Up to 1,000 LPH at 350 bar (5,075 psi) with 1/4" ports.
Contact our engineering team for custom specifications, material options, and technical support for the Simplex Filter-HP.
