Amflow manufactures a comprehensive range of flow control valves, also known as Injection Rate Control Devices (IRCDs). These valves are primarily designed for chemical injection applications, but can also be used in other process applications requiring accurate flow regulation.
The valves provide precise and repeatable flow control across a wide range of flow rates and operating pressures. They are pressure independent, meaning each valve operates with a fixed differential pressure, typically 5–10 bar depending on the valve model. This ensures stable flow control even under high differential pressure conditions. For example, the upstream pressure can be 690 bar while the injection pressure is only 10 bar, without affecting the valve's flow range.
Manufactured from corrosion-resistant materials such as 316/316L stainless steel, Titanium, Duplex 2205, and Super Duplex 2507, Amflow flow control valves are engineered for reliable operation in demanding offshore and onshore environments.
The product range covers low-flow precision applications through to high-flow methanol, MEG, and biocide injection systems, with options for manual operation or integration with Amflow ATEX-certified electric actuators.
9 products in this category

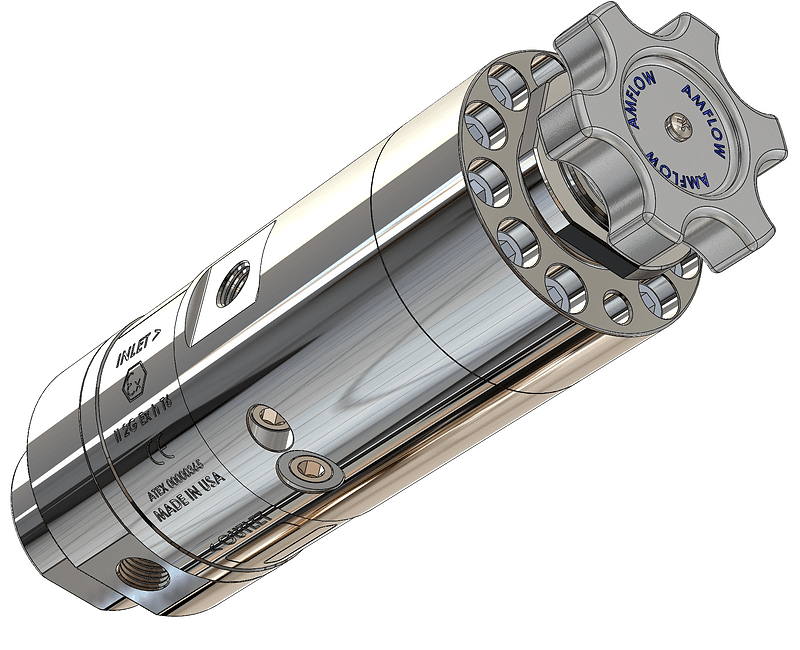

High-pressure flow control valve with removable jet for easy service. Covers 0.09–150 LPH with up to 40:1 turndown ratio at up to 690 bar.
Key Specifications

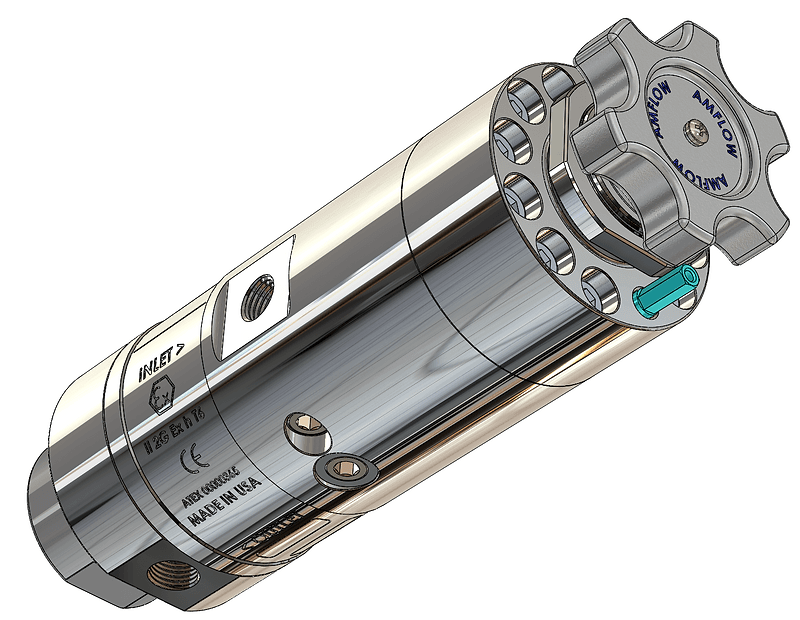

External adjustable jet flow control valve with industry-leading 144:1 turndown ratio. Covers 0.05–140 LPH at up to 690 bar.
Key Specifications
Actuator-ready variant of the AM7E with external adjustable jet. Designed specifically for use with Amflow ATEX/IECEx actuators.
Key Specifications
Medium-to-high flow control valve covering 0.30–600 LPH. Ideal for high-viscosity chemicals with removable jet and 50:1 turndown ratio.
Key Specifications
Ultra-high pressure flow control valve rated to 931 bar (13,500 psi). Covers 1.00–1,350 LPH with Duplex 2205 construction.
Key Specifications
High-pressure version of the AM7B-RJ, rated to 920 bar (13,340 psi). Covers 0.09–150 LPH with medium-pressure SF562CX ports.
Key Specifications
High-flow control valve covering 20–1,350 LPH. Perfect for Methanol, MEG, and Biocide projects requiring higher flow rates.
Key Specifications

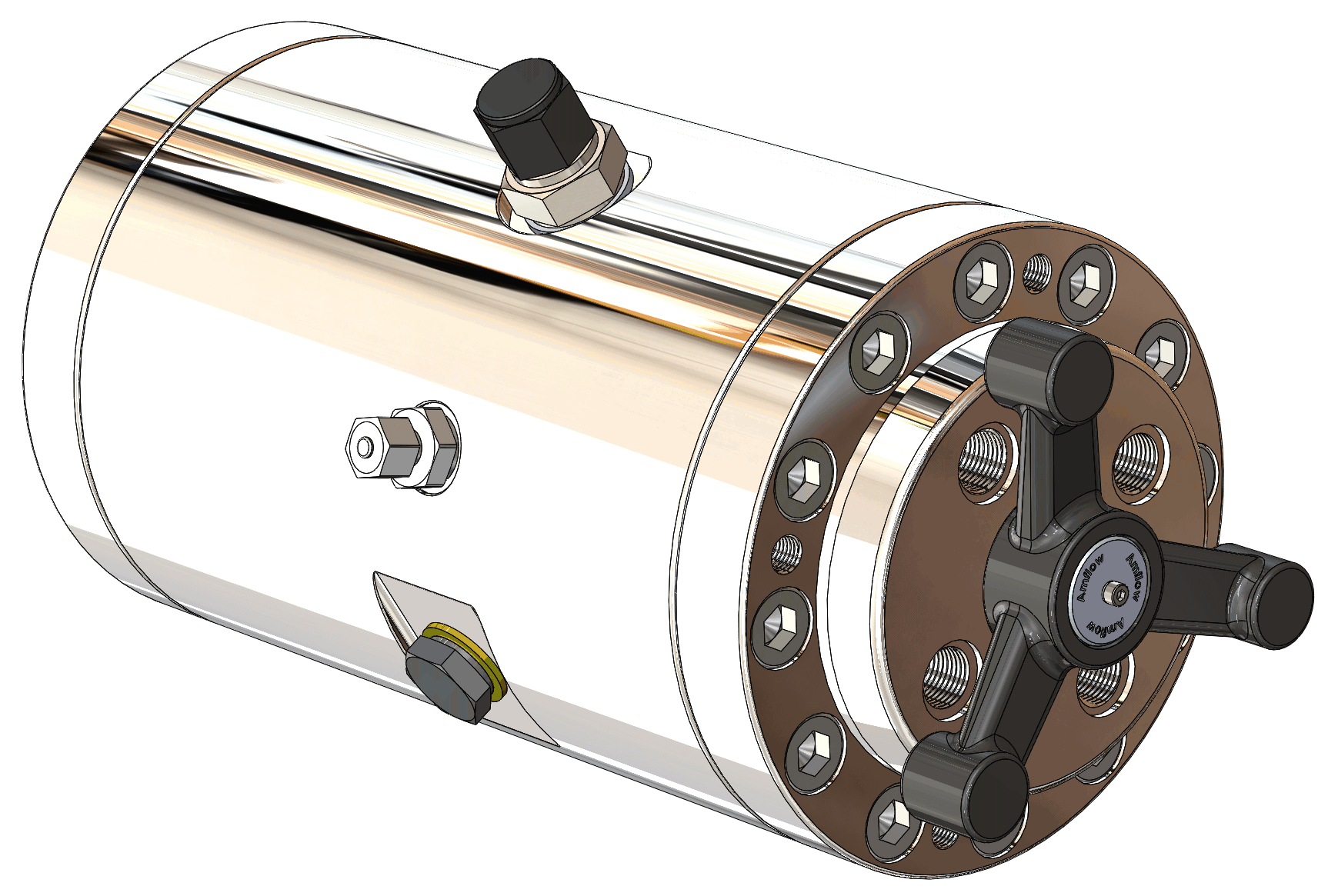

Large-bore high-flow control valve covering 200–3,000 LPH with 1" ports. The premier choice for Methanol, MEG, and Biocide injection projects.
Key Specifications
Large-bore high-flow control valve covering up to 6,600 LPH at 1" ports. Sister model to the AM37A for the largest Methanol, MEG, and Biocide injection projects.
Key Specifications
Looking for a specific product or configuration not listed here?
Contact us for custom requirementsContact our technical team for detailed specifications, pricing, and lead times for flow control valves.
