Calibration Pots

Calibration Pots

Amflow Norge supplies a comprehensive range of calibration pots designed for the oil and gas industry. Our stainless steel calibration pots from Matek (Germany) feature stressed relieved borosilicate glass for clear visibility, radial glass sealing, and all SS 316 construction. Designed to EN 1595, the range covers volumes from 2.5 ml to 40 litres with NPT or flanged ANSI B16.5 connections. Combined level gauge and calibration pot models are also available for dual-function installations. For less demanding applications, we also supply AccuDraw PVC and polypropylene calibration cylinders from Primary Fluid Systems. The full range is suitable for capacity measurements from 160 ml/hr to 2,400 l/hr.

Key Features

Designed for the oil and gas industry to EN 1595
Borosilicate glass provides clear visibility without chemical attack risk
Radial glass sealing for stress-free sealing over wide temperature range
All SS 316 metals (wetted and non-wetted) as standard
Robust glass protection for mechanical impact
Dual scale indication for volumetric and capacity read-out
Volume range from 2.5 ml to 40 litres (SS) and 100 ml to 50,000 ml (PVC/PP)
Optional materials: Duplex SS, Super Duplex SS, Hastelloy C276, Titanium Gr.2, PVDF

Request a Quote View Products (17)

Product Categories

Stainless Steel Calibration Pots

Premium SS 316/316L calibration pots by Matek (Germany). Borosilicate glass construction designed to EN 1595 for oil and gas, petrochemical, and offshore applications. Available from 2.5 ml to 40 L with NPT or flanged connections.

PVC & Polypropylene Calibration Cylinders

AccuDraw calibration cylinders by Primary Fluid Systems in PVC and polypropylene construction. Sizes from 100 ml to 50,000 ml. Dual graduation scale in mL and GPH. Meets ISO 6706. NSF/ANSI-61 certified (PVC). Suitable for general industrial and water treatment applications.

Product Catalog

Calibration Pots

17 products in this category

Matek Stainless Steel Calibration Pots

SS Calibration Pot – 2.5 ml

SS-V-2.5-N-N

SS Calibration Pot – 2.5 ml

Stainless steel calibration pot with 2.5 ml volume. Capacity scale range 0–160 ml/hr. 1/2" NPT or 1/2" 150# flanged connections.

Key Specifications

•Volume: 2.5 ml
•Capacity: 0 – 160 ml/hr
•Material: SS 316/316L
•Connection: 1/2" NPT or 1/2" 150# RF
•Seal: FKM / Viton (standard)
•Design Standard: EN 1595

View Product Request Quote

SS Calibration Pot – 5.5 ml

SS-V-5.5-N-N

SS Calibration Pot – 5.5 ml

Stainless steel calibration pot with 5.5 ml volume. Capacity scale range 0–340 ml/hr. 1/2" NPT or 1/2" 150# flanged connections.

Key Specifications

•Volume: 5.5 ml
•Capacity: 0 – 340 ml/hr
•Material: SS 316/316L
•Connection: 1/2" NPT or 1/2" 150# RF
•Seal: FKM / Viton (standard)
•Design Standard: EN 1595

View Product Request Quote

SS Calibration Pot – 9 ml

SS-V-9-N-N

SS Calibration Pot – 9 ml

Stainless steel calibration pot with 9 ml volume. Capacity scale range 0–0.55 l/hr. 1/2" NPT or 1/2" 150# flanged connections.

Key Specifications

•Volume: 9 ml
•Capacity: 0 – 0.55 l/hr
•Material: SS 316/316L
•Connection: 1/2" NPT or 1/2" 150# RF
•Seal: FKM / Viton (standard)
•Design Standard: EN 1595

View Product Request Quote

SS Calibration Pot – 20 ml

SS-V-20-N-N

SS Calibration Pot – 20 ml

Stainless steel calibration pot with 20 ml volume. Capacity scale range 0–1.2 l/hr. 1/2" NPT or 1/2" 150# flanged connections.

Key Specifications

•Volume: 20 ml
•Capacity: 0 – 1.2 l/hr
•Material: SS 316/316L
•Connection: 1/2" NPT or 1/2" 150# RF
•Seal: FKM / Viton (standard)
•Design Standard: EN 1595

View Product Request Quote

SS Calibration Pot – 45 ml

SS-V-45-N-N

SS Calibration Pot – 45 ml

Stainless steel calibration pot with 45 ml volume. Capacity scale range 0–2.7 l/hr. 1/2" NPT or 1/2" 150# flanged connections.

Key Specifications

•Volume: 45 ml
•Capacity: 0 – 2.7 l/hr
•Material: SS 316/316L
•Connection: 1/2" NPT or 1/2" 150# RF
•Seal: FKM / Viton (standard)
•Design Standard: EN 1595

View Product Request Quote

SS Calibration Pot – 100 ml

SS-V-100-N-N

SS Calibration Pot – 100 ml

Stainless steel calibration pot with 100 ml volume. Capacity scale range 0–6.0 l/hr. 1/2" NPT or 1/2" 150# flanged connections.

Key Specifications

•Volume: 100 ml
•Capacity: 0 – 6.0 l/hr
•Material: SS 316/316L
•Connection: 1/2" NPT or 1/2" 150# RF
•Seal: FKM / Viton (standard)
•Design Standard: EN 1595

View Product Request Quote

SS Calibration Pot – 220 ml

SS-V-220-N-N

SS Calibration Pot – 220 ml

Stainless steel calibration pot with 220 ml volume. Capacity scale range 0–13 l/hr. 1/2" NPT or 1/2" 150# flanged connections.

Key Specifications

•Volume: 220 ml
•Capacity: 0 – 13 l/hr
•Material: SS 316/316L
•Connection: 1/2" NPT or 1/2" 150# RF
•Seal: FKM / Viton (standard)
•Design Standard: EN 1595

View Product Request Quote

SS Calibration Pot – 500 ml

SS-V-500-N-N

SS Calibration Pot – 500 ml

Stainless steel calibration pot with 500 ml volume. Capacity scale range 0–30 l/hr. 1/2" NPT or 1/2" 150# flanged connections.

Key Specifications

•Volume: 500 ml
•Capacity: 0 – 30 l/hr
•Material: SS 316/316L
•Connection: 1/2" NPT or 1/2" 150# RF
•Seal: FKM / Viton (standard)
•Design Standard: EN 1595

View Product Request Quote

SS Calibration Pot – 1,000 ml

SS-V-1000-N-N

SS Calibration Pot – 1,000 ml

Stainless steel calibration pot with 1,000 ml volume. Capacity scale range 0–60 l/hr. 3/4" NPT or 3/4" 150# flanged connections.

Key Specifications

•Volume: 1,000 ml
•Capacity: 0 – 60 l/hr
•Material: SS 316/316L
•Connection: 3/4" NPT or 3/4" 150# RF
•Seal: FKM / Viton (standard)
•Design Standard: EN 1595

View Product Request Quote

SS Calibration Pot – 2,200 ml

SS-V-2200-N-N

SS Calibration Pot – 2,200 ml

Stainless steel calibration pot with 2,200 ml volume. Capacity scale range 0–135 l/hr. 3/4" NPT or 3/4" 150# flanged connections.

Key Specifications

•Volume: 2,200 ml
•Capacity: 0 – 135 l/hr
•Material: SS 316/316L
•Connection: 3/4" NPT or 3/4" 150# RF
•Seal: FKM / Viton (standard)
•Design Standard: EN 1595

View Product Request Quote

SS Calibration Pot – 4,000 ml

SS-V-4000-N-N

SS Calibration Pot – 4,000 ml

Stainless steel calibration pot with 4,000 ml volume. Capacity scale range 0–240 l/hr. 1" NPT or 1" 150# flanged connections.

Key Specifications

•Volume: 4,000 ml
•Capacity: 0 – 240 l/hr
•Material: SS 316/316L
•Connection: 1" NPT or 1" 150# RF
•Seal: FKM / Viton (standard)
•Design Standard: EN 1595

View Product Request Quote

SS Calibration Pot – 6.5 L

SS-V-6.5L-N-N

SS Calibration Pot – 6.5 L

Stainless steel calibration pot with 6.5 litre volume. Capacity scale range 0–400 l/hr. 3/4" NPT or 3/4" 150# flanged connections.

Key Specifications

•Volume: 6.5 L
•Capacity: 0 – 400 l/hr
•Material: SS 316/316L
•Connection: 3/4" NPT or 3/4" 150# RF
•Seal: FKM / Viton (standard)
•Design Standard: EN 1595

View Product Request Quote

SS Calibration Pot – 10 L

SS-V-10L-N-N

SS Calibration Pot – 10 L

Stainless steel calibration pot with 10 litre volume. Capacity scale range 0–600 l/hr. 1" NPT or 1" 150# flanged connections.

Key Specifications

•Volume: 10 L
•Capacity: 0 – 600 l/hr
•Material: SS 316/316L
•Connection: 1" NPT or 1" 150# RF
•Seal: FKM / Viton (standard)
•Design Standard: EN 1595

View Product Request Quote

SS Calibration Pot – 22.5 L

SS-V-22L-N-N

SS Calibration Pot – 22.5 L

Stainless steel calibration pot with 22.5 litre volume. Capacity scale range 0–1,350 l/hr. 1" NPT or 1" 150# flanged connections.

Key Specifications

•Volume: 22.5 L
•Capacity: 0 – 1,350 l/hr
•Material: SS 316/316L
•Connection: 1" NPT or 1" 150# RF
•Seal: FKM / Viton (standard)
•Design Standard: EN 1595

View Product Request Quote

SS Calibration Pot – 40 L

SS-V-40L-F-N

SS Calibration Pot – 40 L

Large stainless steel calibration pot with 40 litre volume. Capacity scale range 0–2,400 l/hr. 2" 150# flanged connection only.

Key Specifications

•Volume: 40 L
•Capacity: 0 – 2,400 l/hr
•Material: SS 316/316L
•Connection: 2" 150# RF (flanged only)
•Seal: FKM / Viton (standard)
•Design Standard: EN 1595

View Product Request Quote

AccuDraw PVC & Polypropylene Calibration Cylinders

AccuDraw PVC Calibration Cylinder

AC-PVC

AccuDraw PVC Calibration Cylinder

Translucent PVC calibration cylinder for accurate metering pump calibration. Available 100 mL to 50,000 mL. Four styles with NPT, BSPT, socket, or flanged connections. Dual mL/GPH scale. NSF/ANSI-61 certified.

Key Specifications

•Material: PVC (translucent)
•Sizes: 100 mL to 50,000 mL
•Styles: 4 styles available
•Connection: NPT threaded (standard), BSPT, socket-weld, or flanged
•Scale: Dual graduation (mL and GPH)
•Certification: NSF/ANSI-61, ISO 6706

View Product Request Quote

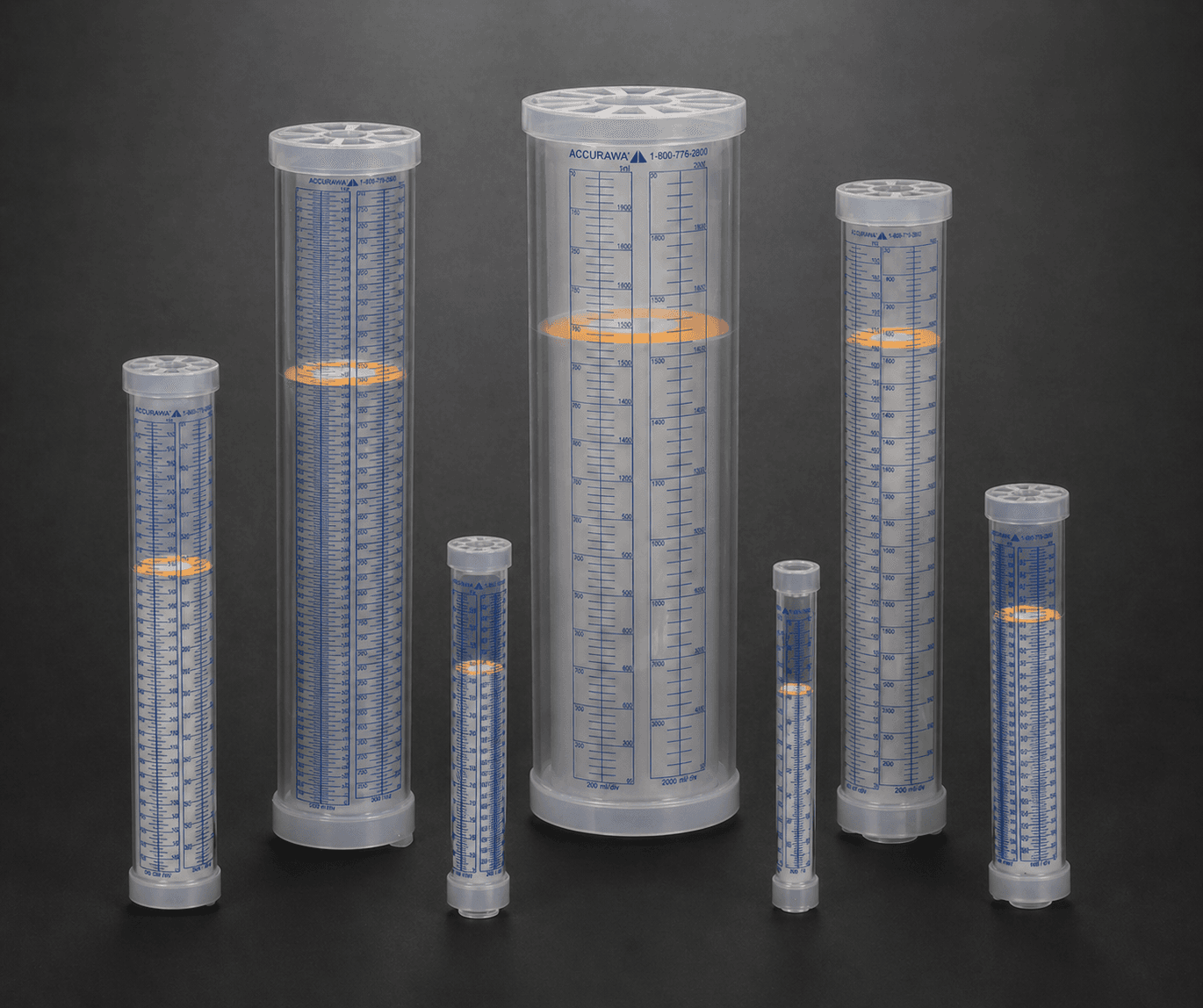

AccuDraw Polypropylene Calibration Cylinder

AC-PP

AccuDraw Polypropylene Calibration Cylinder

Translucent polypropylene calibration cylinder for metering pump calibration. Available 100 mL to 4,000 mL. Three styles with NPT, BSPT, socket, or flanged connections. Graduated in mL. Meets ISO 6706.

Key Specifications

•Material: Polypropylene (translucent)
•Sizes: 100 mL to 4,000 mL
•Styles: 3 styles available
•Connection: NPT threaded (standard), BSPT, socket-weld, or flanged
•Scale: Graduation in mL
•Standard: ISO 6706

View Product Request Quote

Selection Tool

Configure Your Calibration Pot

Choose flow, connection, material, and seal to generate the Matek model code directly on the Calibration Pots page.

Flow / capacity

Bottom / top connection

Material

Seal

Generated model code

SS-V-500-N-N

Format: Material - Seal - Volume - Connection

Capacity scale

0 - 30 l/hr (1)

Volume scale

0 - 500 ml (10)

Bottom connection

1/2" NPT

Top connection

1/2" NPT

Figure

1

Max flow

30 l/hr

This selector uses the Matek calibration pot table from the supplied PDF. Optional code suffixes such as GPH, GPD, and R are not included in this version.

Looking for a specific product or configuration not listed here?

Contact us for custom requirements

Need More Information?

Contact our technical team for detailed specifications, pricing, and lead times for calibration pots.
